Specifications

Application:

Bottle

Speed

Max.40 tubes / min

Filling volume

5~100g

Filling accuracy

±1% (base on 100ml)

Main motor

1HP (0.75KW)

Weight

Net.800kgs /Gr.900kgs

Air compressor

6 bar

Application

Super glue

Please contact Kentex

Specifications

Application:

Aluminum tube

Speed

Max.60 tubes / min

Tube DIA.

ø10-ø25 tube length including cap 50-135mm

Filling volume

1.0~20g

Filling accuracy

±1% (base on 100ml)

Main motor

2HP ( 1.5KW )

Weight

Net.500kgs /Gr.700kgs

Air compressor

6 bar

Application

Pharmaceutical

Ointment, hair dye

Cosmetics

Face Cleanser, Lotion, Mask, Lip Gloss

Chemical

SILICONE, toothpaste

Food

Chocolate Sauce, Wasabi Sauce, Tomato Sauce

Product Range

Low, medium and high viscosity products

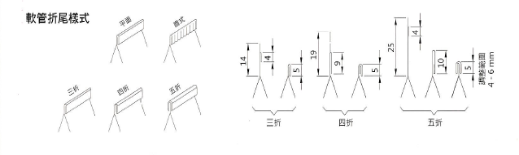

Folding style

Specifications

Application

Aluminum tube

Speed

Max.75 tubes / min

Tube DIA.

ø10-ø13.5 tube length including cap 50-135mm

Filling volume

0.5 – 3 g

Filling accuracy

 ±0.5% (base on 100ml)

Main motor

2HP ( 1.5KW )

Weight

Net.450kgs /Gr.650kgs

Air compressor

6 bar

Application

Super glue

 (low viscosity cps<150)

Folding style
